EPS Block Molding Machine | Polystyrene Foam Block Machine Manufacturer
✓ ISO 9001 Certified
✓ 30+ Years Experience
✓ CE Certified
EPS block molding machine (also known as EPS foam block making machine or expanded polystyrene block machine) adopts PLC (programmable controller) and human-machine interface control with automatic feeding. As a complete EPS insulation board production line, it delivers stable performance and high efficiency for producing lightweight EPS foam boards.
EPS Board Product Features
EPS board produced by our machine features:
Production Capacity: Supporting equipment can switch between 10-300mm thicknesses within 90 seconds, daily production capacity of 1,500 square meters, real-time density monitoring of ±0.5kg/m³!
EPS Block Molding Machine Specifications
Swipe or scroll sideways to view all columns
Specifications may vary. Contact us for detailed technical parameters.
EPS Block Production Line Components
Complete EPS insulation board machine production line includes the following equipment units: vacuum block molding machine, pre-expander, steam boiler, cutting machine, and silo system.

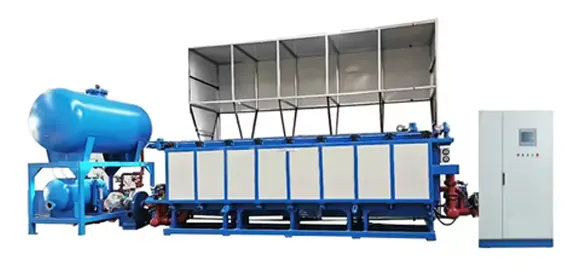

EPS Vacuum Board Machine
Pre-expanded EPS beads are heated and pressurized in the mold to form a dense core board with extremely high density and closed-cell rate, minimizing gas conduction and convection.

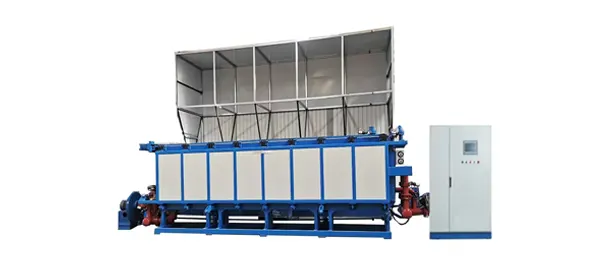

EPS Air-cooled Board Machine
Pre-expanded EPS beads are filled into the mold, steam is introduced for secondary expansion and fusion. Cold air rapidly cools and sets the foam blocks for demolding.

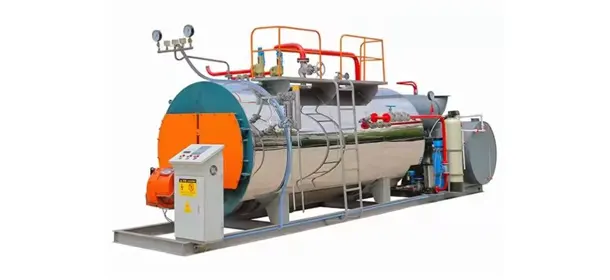

Boiler
Energy supply characterized by stable high-pressure steam, low energy consumption cost, high production efficiency, and compliance with environmental protection standards.

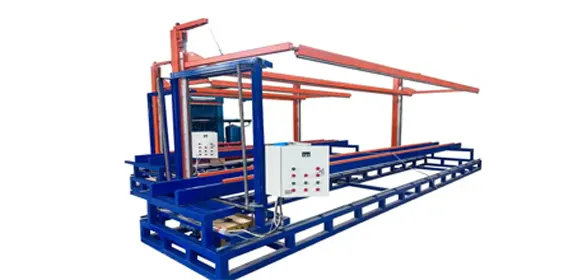

Cutting Machine
Customized cutting for finished product processing, with nearly zero material loss, precisely meeting customer demands for various dimensions.

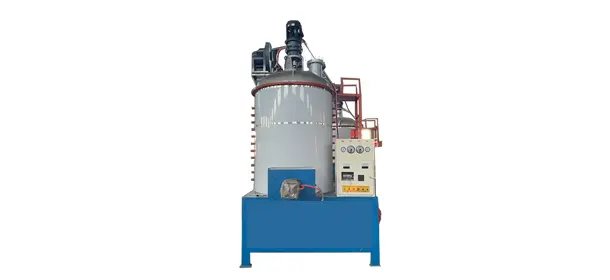

Foaming Machine
Density of raw material preparation is controllable, beads are uniform, and product has stable heat preservation and buffering performance.

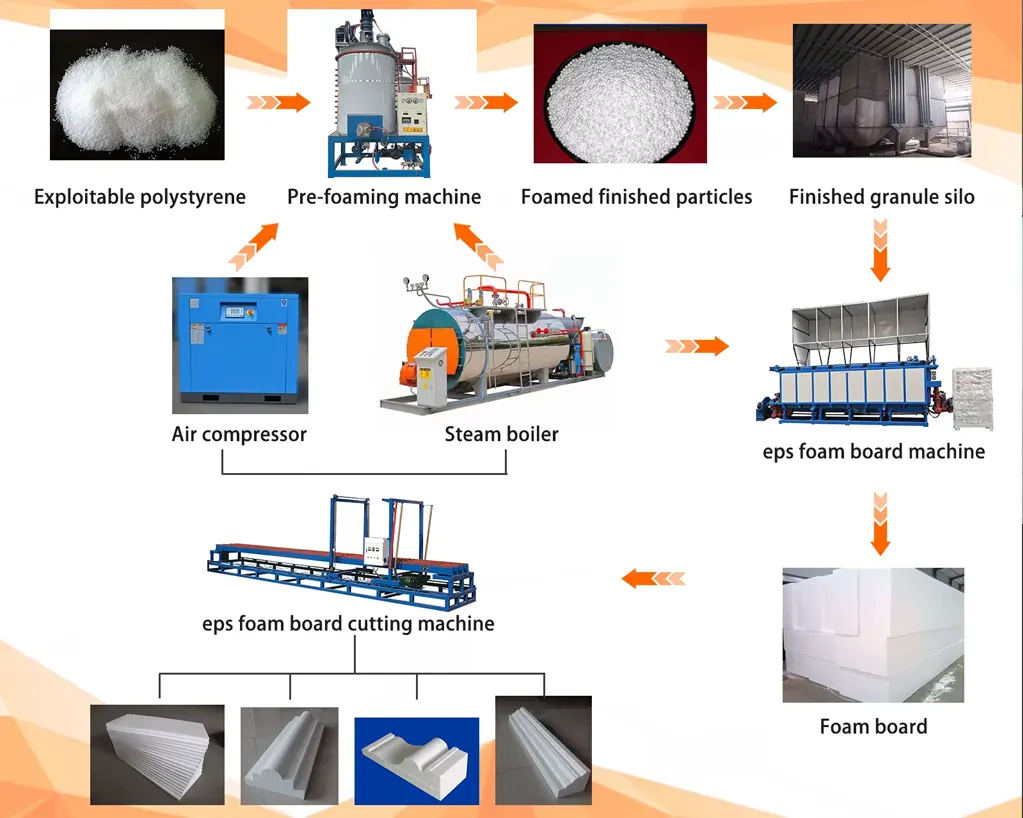

EPS Foam Board Production Process
The complete EPS foam board production line includes 9 integrated steps:
Phase 1: Raw Material Preparation
Raw material: Expandable polystyrene beads as the base material for EPS production
Steam heating expands polystyrene beads to 20-50 times their original volume
Pre-expanded beads become lightweight, closed-cell foam particles
Storage silo for aging and stabilizing expanded particles before molding
Phase 2: Molding & Forming
Provides compressed air for pneumatic systems and pressure control
Generates high-pressure steam for heating and expansion process
Main molding unit: beads are filled, steamed, and fused into solid foam blocks
Phase 3: Cutting & Finishing
Solid EPS foam blocks ready for cutting into various shapes and sizes
CNC-controlled cutting for precise dimensions and custom profiles

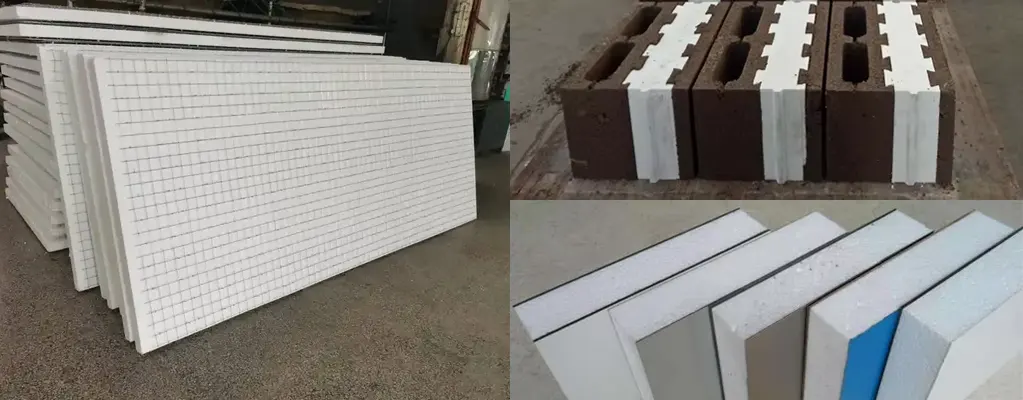

Final Products
