Disposable Cup Thermoforming Machine | PP Cup Making Machine Manufacturer
The DYDB automatic cup thermoforming machine is designed for producing PP, PE, PET and PVC cups, containers, trays and lids. With PLC & HMI control system, it delivers labor-saving operation, low maintenance, and high efficiency for disposable packaging production.
Key Features
The DYDB plastic cup thermoforming machine combines hydraulic and pneumatic systems, offering superior performance compared to traditional mechanical cam systems.
PLC & Touch Screen ControlFull automation with intuitive HMI interface for easy operation and precise control
Four-Pillar Mold FixingEnsures whole machine precision and stable forming quality
Temperature Control ModulePrecise control of individual temperature zones for consistent results
Low Noise OperationHydraulic + pneumatic system reduces working noise significantly
32 cycles/min High Speed FormingMaximum forming speed of 32 cycles per minute with forming depth up to 130mm
Technical Parameters
Swipe or scroll sideways to view all columns
| Parameter | Value |
|---|---|
| Power Supply | 380V/3P/50HZ |
| Material | PP/PS/PET/PVC plastic thermoforming sheet |
| Driving Method | Cam + Air cylinder |
| Forming Speed | ≤32 cycles/min (depth≤130mm) |
| Sheet Width | W=720mm (adjustable) |
| Air Pressure | 0.6~0.8Mpa |
| Air Consumption | 2200L/min |
| Air Compressor Capacity | 2200~3000L/min |
| Water Consumption | ≤0.5m³ |
| Machine Dimension | 3.3×1.4×2.2m |
| Electrical Consumption | Approx. 45KW |
Note: Custom specifications available upon request. Contact us for model recommendations based on your production requirements.
Machine Components

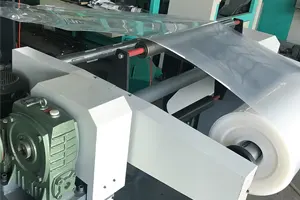

Feeding Part
- Double material rod automatic loading device
- Roll diameter 1100mm, capacity 500kg
- Servo motor drive, infrared control

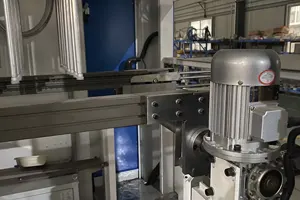

Conveying Part
- Aviation aluminum alloy chain guide
- Water-cooled rail for efficient cooling
- Electrically adjustable, servo driven

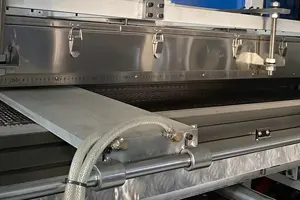

Heating Part
- Oven length 3x forming length
- Upper/lower oven heating
- Ceramic heating tile, overload protection
