Product Description
Our EPE Foam Pipe Extruder ▶️ produces PE foam tubes, pipes, rods, and sticks—a new type foaming material widely used for air conditioner tube sheaths, pool noodles, toy guardrails, and more. The machine features high foam ratio, excellent elasticity, and superior heat preservation, delivering versatile production with multiple model options.
✅ High Foam Ratio 20-48 | ✅ 5 Models Available | ✅ Siemens Motor | ✅ 38CrMoAlA Screw & Barrel

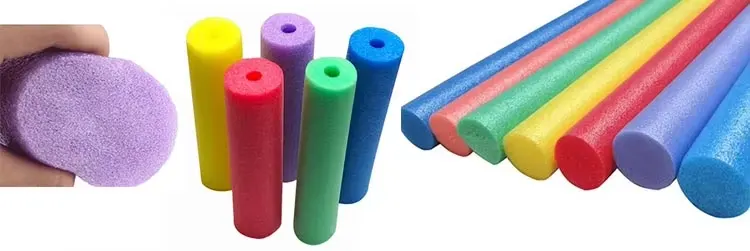

Key Applications
EPE foam pipe extruder produces versatile foam filling and ornament materials for diverse industries.
Air Conditioner Tube Sheath
Heat preservation foam tubes for HVAC pipe insulation
Pool Noodles
Foam rods for swimming pool floats and recreational use
Furniture Filling
Mattress springs, sofa backrests, automobile seats
Building Joint Filling
Expansion joint filler with excellent rebound elasticity
Versatile Output: The extruder produces foam tubes (Ф20-120mm), pipes, rods (Ф8-80mm), and sticks with customizable specifications. Ideal for both industrial and consumer applications.
Technical Parameters
Swipe or scroll sideways to view all columns
| Parameter | Unit | DYEPEG-75 | DYEPEG-90 | DYEPEG-105 | DYEPEG-120 | DYEPEG-150 |
|---|---|---|---|---|---|---|
| L/D Ratio | – | 55:1 | 55:1 | 55:1 | 55:1 | 55:1 |
| Screw Speed | r/min | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 |
| Foam Rate | – | 20-48 | 20-48 | 20-48 | 20-48 | 20-48 |
| Pipe Specification | mm | Ф20-50 | Ф30-80 | Ф40-100 | Ф50-120 | Ф50-120 |
| Rod Specification | mm | Ф8-35 | Ф15-50 | Ф18-70 | Ф20-80 | Ф20-80 |
| Cooling Method | – | Water cooling | Water cooling | Water cooling | Water cooling | Water cooling |
| Total Power | kW | 40 | 90 | 100 | 120 | 120 |
| Overall Dimensions | m | 16×1.3×1.7 | 18×1.6×2 | 20×1.8×2 | 22×2×2 | 22×2×2 |
Note: Custom specifications available upon request. Contact us for model recommendations based on your product size requirements.
Key Features
Automatic Feeding System
Feeding capacity 350-450 kg/hr. 304 stainless steel hopper with 350kg volume, CE standard compliant.
Stainless Steel Operation Table
SS41 steel CE standard operation table and ladder for material blending and safe operation.
Variable Frequency Traction
Motor drives gear box with inverter-controlled speed. Adjustable gap for different product specifications.
Safe Foaming Agent Injection
Stainless steel valve core. 60MPa shockproof gauge. Piston itinerary regulation. Explosion-proof motor.
Auto Meter Counter
Automatic length-measuring device. Meter controller with preset alarming for precise cutting control.
Auto-cutting System
Cylinder-driven knife movement. Precise, stable cutting force for consistent product dimensions.
Extruder Features
⚙️ Corrosion-resistant & High-hardness Extruder
The extruder’s feeding section features a cooling water jacket to ensure smooth material flow and prevent blockages. The screw barrel and screw are made of 38CrMoAlA alloy steel with nitrogen treatment for exceptional durability.
Nitrogen treatment
Water cooling jacket
Siemens motors
GUOMAO reducers
Advanced Heating & Cooling System
Heating coils utilize internal water circulation channels with wall thickness 10mm thicker than industry standards. Dual-mode cooling operation: manual adjustment and automatic PID control for precise temperature management.
Water circulation
PID auto control
Manual adjustment
Machine Components

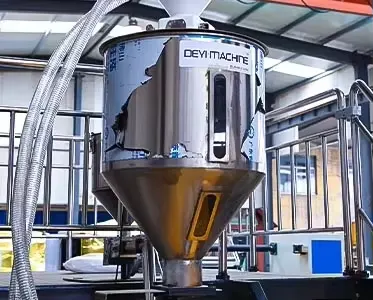

Automatic Feeding System
Adopts an automatic feeding system with feeding capacity of 350-450 kg/hr. The entire hopper is made of 304 stainless steel with volume of 350 kilograms, meeting CE standards for safe and efficient material handling.

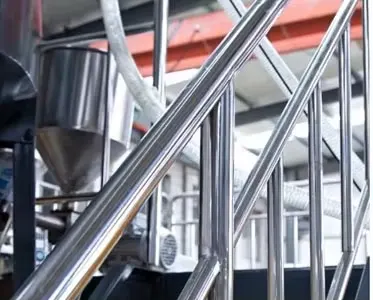

Stainless Steel Operation Table
Operation table of blending materials made of SS41 steel CE standard. Steel ladder made of SS41 steel CE standard for safe operator access and efficient material handling.

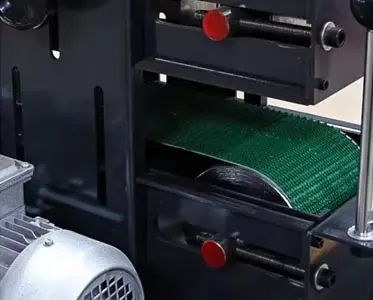

Variable Frequency Traction Unit
Haul-off driven type: motor drives gear box with rotating speed controlled by inverter. The gap is adjustable, applying to different specification products for versatile production.

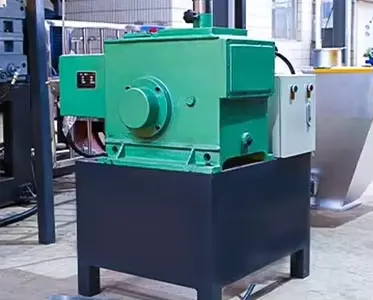

Safe Foaming Agent Injection Unit
Injecting valve core material is stainless steel with shockproof pressure gauge 60MPa. Output regulation regulates the itinerary of piston. Equipped with explosion-proof motor drive for safe operation.

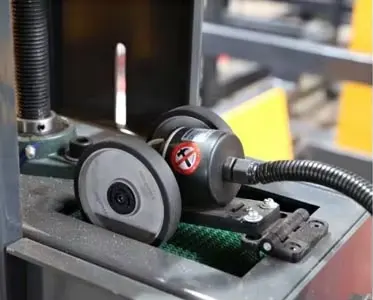

Auto Meter Counter
Equipped with automatic length-measuring device to control cutting length of products automatically. Count control: meter controller can be preset alarming with adjustable settings for precise production.

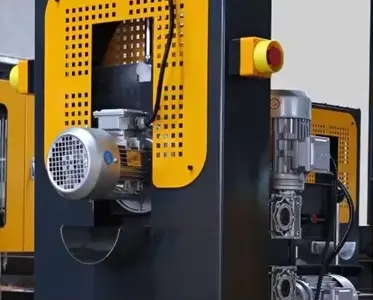

Auto-cutting System
Features cylinder-driven knife movement system ensuring precise and stable cutting force for consistent product dimensions. Reliable cutting performance for foam pipe and rod production.
