Product Description

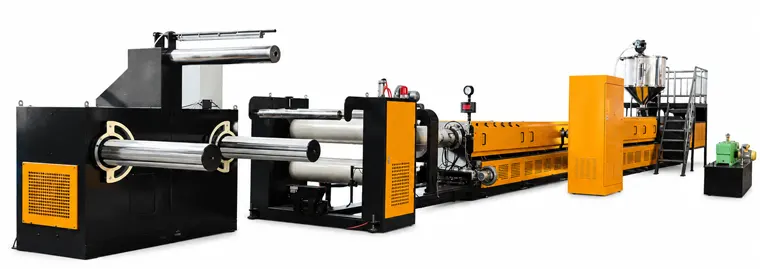

The PS Foam Sheet Machine is designed to extrude PS foam rolls, which serve as the primary material for producing various food containers using a foam food box machine. These include lunch boxes, dinner trays, bowls, and more through the thermoforming process.
Additionally, this versatile machine can produce advertisement boards, industrial packaging materials, and other applications. It features stable performance, high capacity, full automation, and consistently delivers quality products.
✅ Stable Performance | ✅ High Capacity | ✅ Full Automation | ✅ Quality Output
▶️ Click to watch machine in action
Applications of PS Foam Products
PS (Polystyrene) foam sheets are versatile materials widely used across multiple industries for packaging, insulation, and creative applications.
? Packaging Material
Fast food boxes, take-out containers, fruit & vegetable trays, beverage cups, food storage containers
? Insulation Material
Construction insulation boards, heat-insulating panels, electrical packaging with excellent thermal properties
? Art & Craft
Easy to cut and decorate—ideal for model making, decorations, and DIY creative projects
?️ Protective Material
Lightweight cushioning for fragile items—glassware, ceramics, electronics during transport
Technical Parameters
Swipe or scroll sideways to view all columns
| Parameter | Unit | DY-PSP75/90 | DY-PSP105/120 | DY-PSP120/130 | DY-PSP135/150 | DY-PSP180/200 |
|---|---|---|---|---|---|---|
| Screw Diameter | mm | 75/90 | 105/120 | 120/130 | 135/150 | 180/200 |
| L/D Ratio | – | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 |
| Max. Output | kg/h | 150-200 | 300-400 | 500-600 | 800-1000 | 1500-2000 |
| Sheet Width | mm | ≤1200 | ≤1500 | ≤2000 | ≤2500 | ≤3000 |
| Sheet Thickness | mm | 0.8-10 | 0.8-10 | 0.8-12 | 0.8-12 | 0.8-15 |
| Screw Speed | rpm | 0-100 | 0-80 | 0-80 | 0-60 | 0-60 |
| Motor Power | kW | 45-55 | 75-90 | 110-132 | 160-185 | 220-250 |
| Total Power | kW | 80-100 | 130-150 | 180-200 | 250-280 | 350-400 |
| Dimensions (L×W×H) | m | 12×3×4 | 15×3.5×4.5 | 18×4×5 | 22×4.5×5.5 | 28×5×6 |
| Machine Weight | T | 8-10 | 15-18 | 22-25 | 30-35 | 45-50 |
? Note: Custom specifications available. Contact us for model recommendations based on your production requirements.
Detailed Description

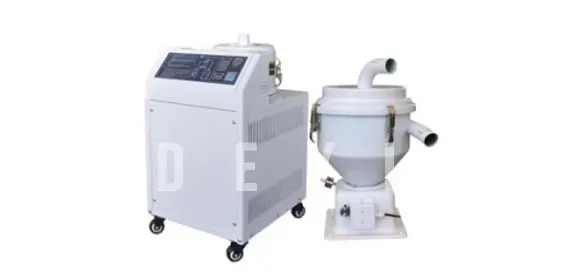

Automatic Feeding System
High-capacity automatic feeding system with servo motor and metering screw for precise material delivery. The conical CE-standard hopper is made of SUS304 stainless steel with dust-proof design.

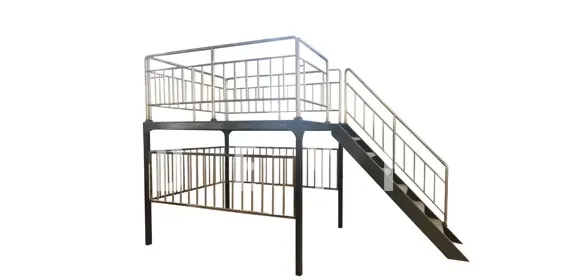

Feeding Operation Table
Stainless steel feeding platform designed for corrosion resistance. Welded with high-strength steel for safer and more stable support during operation.

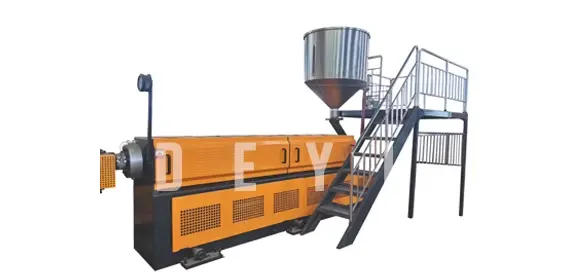

Extruders
High-performance extruder with screw and barrel made of 38CrMoAlA material, treated with nitrogen and alloy spraying for durability. The barrel is heated by casting aluminum heating rings with protective cover.

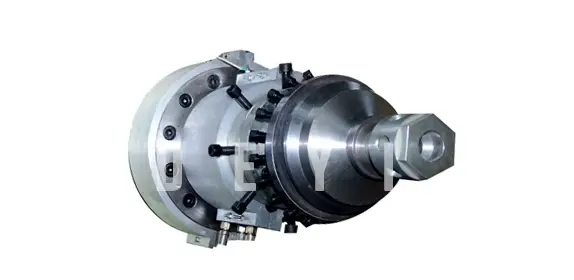

Extruding Die Head
Precision die head with nitrogen-treated mould for wear resistance. Features 10 adjustable screws for die lip gap adjustment, 2-zone temperature control via thermocouple, and pressure gauge for quality sheet output.

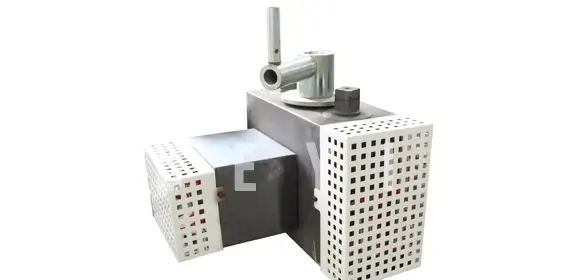

Screen Changer
Bypass converting screen changer maintains equal material pressure during screen change—no stop, no sheet breakage, no material waste. Supports customization of manual and automatic options.

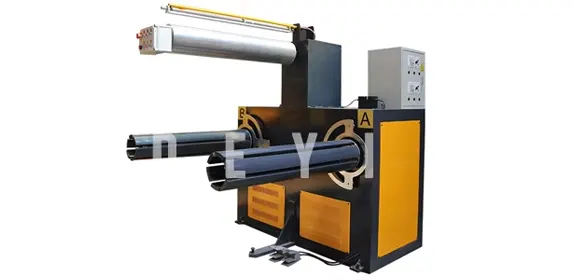

Winding Unit
Stainless steel winding axis with pneumatic control and automatic removing device for labor saving. Equipped with dual switches—press button and pedal switch—for easy operation and safety guarantee.
