EPE Foam Sheet Bonding Machine | Foam Laminating Machine Manufacturer
1200-2000mm Width
Electric Heating
ISO 9001 Certified
Our EPE foam sheet bonding machine (also known as EPE foam bonding machine or foam laminating machine) is designed for thickening EPE foam sheets using high-temperature air as the heat-conducting medium. This foam sheet bonding machine melts EPE foam sheets together and presses them with steel rollers, producing thickened sheets widely used in construction, packaging, shoemaking, and luggage industries.
Electric Heating
Easy Operation
Multi-Width Options
Working Process of EPE Bonding Machine
Our EPE foam bonding equipment uses high-temperature air to melt EPE foam sheets, then presses them with steel rollers to create thickened sheets for various industrial applications.
Sheet Loading
EPE foam sheets are loaded into the foam laminating machine feeding system, positioned for the bonding process.
Air Heating
High-temperature air flows between sheets, heating and melting the EPE foam surface layers.
Press Bonding
Steel rollers press the heated sheets together, fusing the melted surfaces into a single thickened sheet.
Cooling & Output
The bonded sheet cools and is output as a thickened EPE foam sheet ready for downstream processing.
Features of EPE Foam Bonding Machine
Our EPE sheet bonding machine delivers reliable performance for foam sheet thickening—from construction insulation to packaging applications.
High Efficiency
Electric heating system provides rapid and uniform heat distribution, ensuring efficient bonding production
Easy Operation
Simple control panel and automatic feeding system for easy operation and minimal training required
Multiple Width Options
Available in 4 models: 1200mm, 1500mm, 1800mm, 2000mm width to meet different production requirements
Reliable Structure
Robust steel frame and precision rollers ensure stable operation and consistent bonding quality
Key Applications
Our EPE foam laminating machine produces thickened foam sheets for multiple industries—from construction insulation to protective packaging.
Thickened EPE sheets for building insulation, wall panels, and thermal protection materials
Protective foam packaging for electronics, furniture, and fragile items during shipping
Foam padding for suitcases, bags, and protective cases for travel and storage
Available Width Options: Our foam sheet bonding machine offers 4 models with widths of 1200mm, 1500mm, 1800mm, and 2000mm. Custom configurations available upon request.
EPE Bonding Machine Types & Specifications
Technical parameters of our EPE foam bonding machine models:
Swipe or scroll sideways to view all columns
| Parameter | Unit | DYPEZ1200 | DYPEZ1500 | DYPEZ1800 | DYPEZ2000 |
|---|---|---|---|---|---|
| Width of Product | mm | 1200 | 1500 | 1800 | 2000 |
| Heating Method | – | Electric Heating | |||
| Motor Power | Kw | 4 | 4 | 4 | 4 |
| Total Power | Kw | 40 | 56 | 72 | 72 |
| Overall Size | m | 8×2×2 | 8×2.3×2 | 8×2.6×2 | 8×2.8×2 |
| Total Weight | T | 2 | 2.5 | 3.2 | 3.6 |
Note: Custom specifications available. Contact us to select the right EPE foam sheet bonding machine model for your production needs.
Machine Components
Our EPE foam bonding machine consists of precision-engineered components for reliable operation and high-quality bonding results:

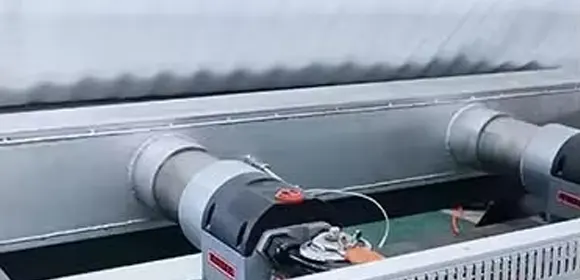

Hot Air Gun
High-temperature hot air gun system for melting EPE foam sheet surfaces. Provides precise and uniform heat distribution for effective bonding between sheets.

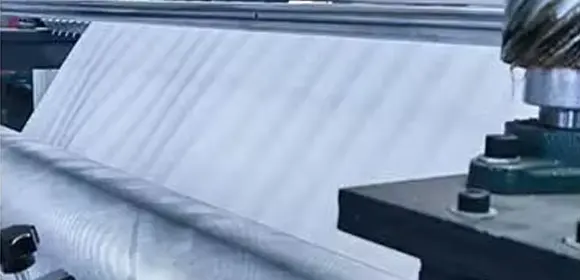

Laminating Roller
Precision steel laminating roller for pressing heated EPE foam sheets together. Ensures strong bonding and consistent thickness across the entire sheet width.

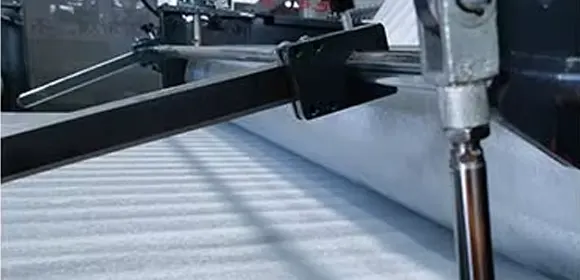

Slitting Unit
Customizable slitting unit for cutting bonded thickened sheets into specific widths. Enables flexible production of various sheet dimensions from a single bonded sheet.

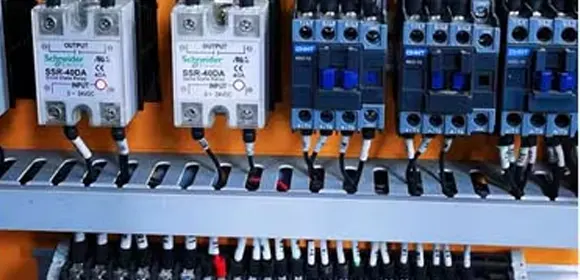

Electrical Cabinet System
Complete electrical control cabinet with PLC system, digital display, and safety components. Provides intuitive operation interface and reliable power distribution.

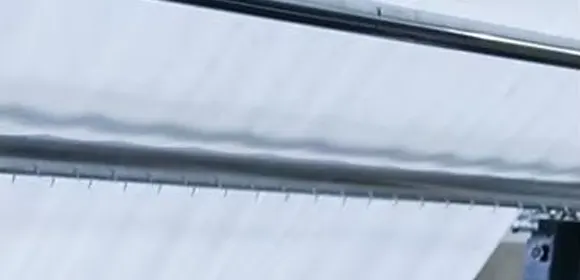

Needle Roller
Specialized needle roller for removing excess gas from EPE foam sheets before bonding. Improves bonding quality by ensuring proper gas evacuation and denser sheet structure.

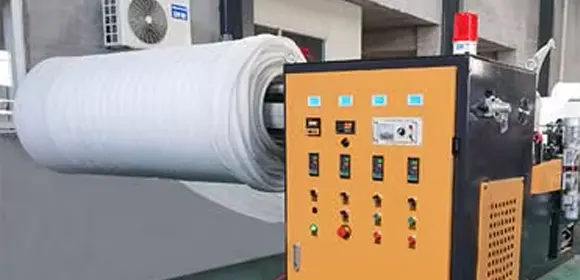

Winding Unit
Automatic winding unit for collecting bonded thickened EPE foam sheets. Features adjustable winding speed and tension control for smooth sheet collection and storage.
