Egg Tray Making Machine
Paper Pulp Molding Production Line | DEYI – Manufacturer Since 1980
Product Description
Our Egg Tray Making Machine ▶️ is a fully automatic egg tray production line that uses waste paper, cardboard, and paper mill leftovers as raw materials. A hydropulper turns them into pulp of certain density, which is then vacuum-adsorbed by a special metal mold to form wet products, and finally dried and shaped into finished egg trays, egg cartons, and various pulp molded products.
✅ Waste Paper Recycling | ✅ Vacuum Forming | ✅ Energy-Saving Drying | ✅ Fully Automatic
As a professional automatic egg tray making machine manufacturer, DEYI provides complete egg tray manufacturing machine solutions from paper egg tray making machine to pulp egg tray production line and paper pulp egg tray production line. Our egg tray machine pulp molding machine is cost-effective, making it ideal for new entrants to the packaging industry. Whether you need a paper pulp egg tray machine, an egg tray forming machine, or a paper egg tray carton machine, our equipment delivers reliable performance with eco-friendly production.
Working Process
The production process of our egg tray carton production line starts with feeding waste paper into a hydropulper, which processes the raw materials into pulp. Then, the pulp is vacuum-adsorbed by a special metal mold to form wet products, which are dried and shaped into finished products.
1
Pulping Process
Waste paper is fed into the hydropulper, mixed with water and stirred to make pulp of certain density.
2
Pulp Storage & Mixing
Pulp is stored in tanks, then transferred to mixing tanks to adjust concentration and homogenize.
3
Vacuum Forming
The vacuum system absorbs pulp onto the metal mold to form wet egg tray products.
4
Drying Process
Wet products are dried using natural drying, brick tunnel kiln, or multi-layer drying line.
5
Shaping & Finishing
Dried products are shaped and pressed to achieve final dimensions and quality standards.
6
Packaging & Stacking
Finished products are automatically stacked, baled, and transferred for packaging and handling.
Key Applications
Our egg tray machine and egg tray molding machine are designed to produce a wide range of biodegradable pulp molded products, meeting the growing demand for eco-friendly packaging solutions. This machine making egg trays serves the following applications:

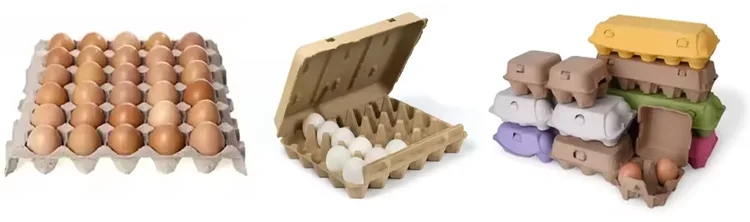

Egg Trays & Cartons
Standard egg tray machine for 30 eggs, cardboard egg trays machine output, and egg cartons tray machine products for poultry farms and supermarkets.
Coffee & Cup Holders
Coffee trays, cup holder trays, and beverage carriers produced by our disposable egg trays machine capability.
Fruit & Food Trays
Disposable fruit trays, food packaging trays, and egg storage tray machine output for agricultural and retail applications.
Industrial Packaging
Industrial inner packaging, medical single-use trays, and seeding trays for various industries.
Eco-Friendly Advantage: All products are made from recycled waste paper—egg tray machine biodegradable solutions that reduce environmental impact. Our 30 egg tray making machine and paper egg tray machine help businesses transition from plastic to sustainable paper pulp packaging. The automatic egg tray production line and egg tray making machine automatic capabilities support the growing egg tray production market demand.
Technical Parameters
Swipe or scroll sideways to view all columns
| Parameter | Unit | DY1200 | DY3000 | DY5000 | DY6000 |
|---|---|---|---|---|---|
| Capacity | pcs/hr | 1200 | 3000 | 5000 | 6000 |
| Water Consumption | kg/h | 180 | 360 | 640 | 1000 |
| Total Power | kw | 87 | 149 | 180 | 230 |
| Workshop Area | L×W×H (m) | 38×5×3 | 33×8×4.5 | 30×10×5 | 38×3.8×4.5 |
| Number of Operators | Person | 4 | 6 | 6 | 6 |
? Note: Custom specifications available upon request. Contact us for model recommendations based on your egg tray production requirements.
Key Features
Waste Paper Recycling
Uses waste paper, cardboard, newspapers, and paper mill leftovers as raw materials—turning waste into valuable egg tray machine mould products while reducing environmental impact.
High Production Capacity
Fully automatic rotary type with outputs of 1200-6000 pieces/hour—ideal for high demand of specific egg tray designs and large-scale automatic egg tray machine operations.
Energy-Saving Drying
Multi-layer drying line with 6-layer metal structure saves over 30% energy compared to traditional brick tunnel kilns, using clean energy such as natural gas, methanol.
Versatile Mold System
By changing molds, the making machine egg tray carton can produce various pulp products—egg cartons, fruit trays, cup holders, seeding trays, and medical trays.
PLC Automation
Equipped with world-renowned brand electrical components from ABB, Schneider, Omron—ensuring reliable operation and easy maintenance for your egg tray manufacturing machine.
Cost-Effective
The egg tray pulp molding machine is cost-effective, making it suitable for new entrants to the packaging industry with low initial investment and high ROI.
Machine Components
Pulping System
Put waste paper into the pulper, add water and stir to make pulp, then store it in the pulp storage tank. Transfer the pulp to the mixing tank to adjust concentration, homogenize and stir further, and finally send the qualified pulp to the supply tank for the forming system.
Forming System
Feed the pulp from the supply tank into the forming machine; the vacuum system absorbs the pulp, leaving it on the mold to form, while the vacuum pump recycles white water. After adsorption, the air compressor's positive pressure blows the formed product from the forming mold to the transfer mold.
Drying System
Three drying methods available: natural drying (relying on weather and wind); traditional drying (brick tunnel kiln with heat sources like natural gas, diesel, coal); new multi-layer drying line (6-layer metal structure, saving over 30% energy, using clean energy such as natural gas, methanol).

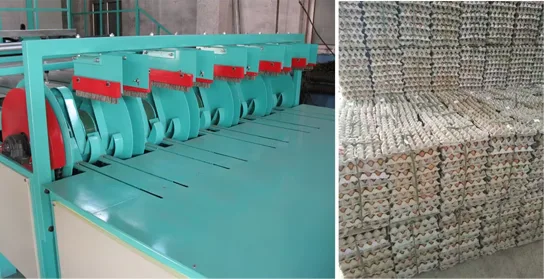

Finished Product Packaging System
Equipped with automatic stackers, balers and transfer conveyors to complete packaging and handling. Fully automatic operation reduces labor costs and improves production efficiency for your egg tray production line.
? Get Your Free Quote
Interested in our Egg Tray Making Machine? Contact us for pricing, specifications, and customization options.
Get Free Quote
